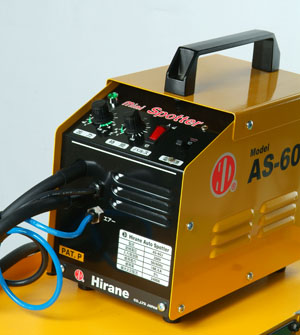

Mini Spotter AS-60

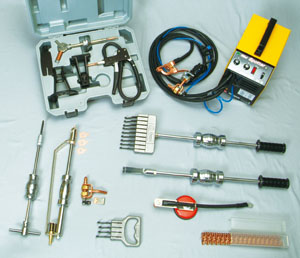

Optional Tools

INNOVATED, EPOC-MAKING & COMPACT SIZED AUTO-MOBILE-BODY REPAIRER. QUALITY JOB IS PROMISED IN LESS TIME AND LESS EFFORT.

〈Features〉

●It can do a quick and satisfactory job of automobile body repairing. So easy to pull out dents from outside. Why not let every repaire-man own unit.
●No complicated switches.Easy to operate but perfect job is ensured with the system of automatic continuous-welding.
●With the capacity of the hight power, 4m extension-cord from the unit.

SPECIFICATIONS
PRIMARY INPUT 220V/400V Single Phase
MAX. INPUT 18KVA(Within 30A Braker)
DUTY CYCLE 5%
MAX. IOUTPUT 2400A
INPUT POWER CORD 2sq. mm. 3cores, 6m
WHITE cord is for ground earth
OUTPUT POWER CORD 38sq. mm+,-1each(+4mm cord : 50sq. mm)
DIMENSIONS H280×W180×D300mm
WEIGHT 25Kgs

Operation panel
