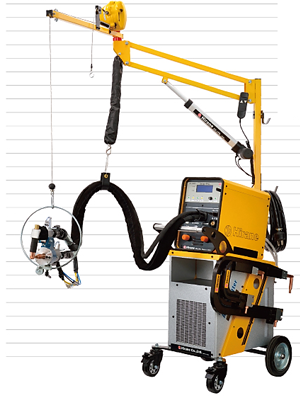

ASI-14000T-2

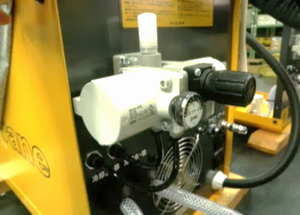

Built-in Air pressure booster

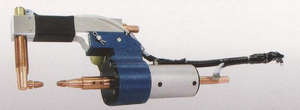

Airgun
Wheel Arch Arm

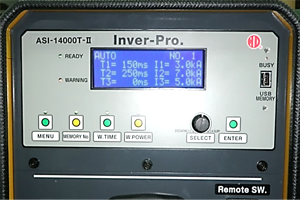

Memorizes work data & prints out
〈Features〉
●Large welding power 12000A / water cooled
●Prints out memorized work data in USB memory
●Suitable for High Tensile Steel welding
●2000Hz High Frequency operation results in less power consumption
●Max 7500N pressure power Air Gun

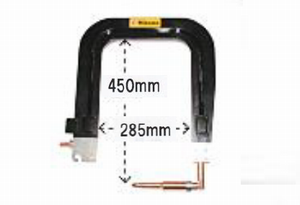

450mm Wide Arm

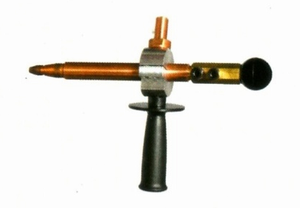

Single Spot Holder
| Specifications | |
|---|---|
| Input Power | 220V/ 380V / 3 phase |
| Rated Input Power (100%) | 65 KVA |
| Rated Input Power (50%) | 22 KVA |
| Inverter frequency | 2000 Hz |
| Secondary Maximum Welding Current | 12000 ADC |
| Secondary No Loading Power | 1V～26V |
| Dimension | 300 x 500 x 480mm (H) |
| Welder on the trolley | 625 x 860 x 1370mm (H) |
| Weight | 115 kgs (total) |
